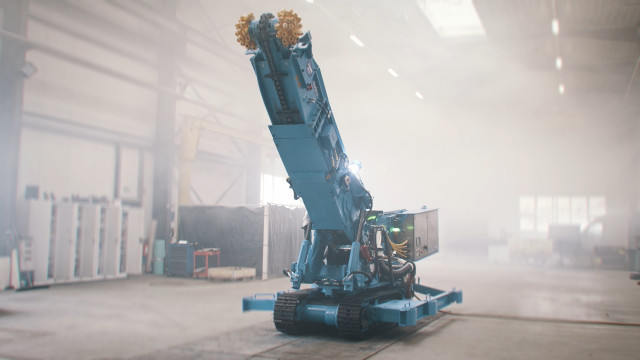

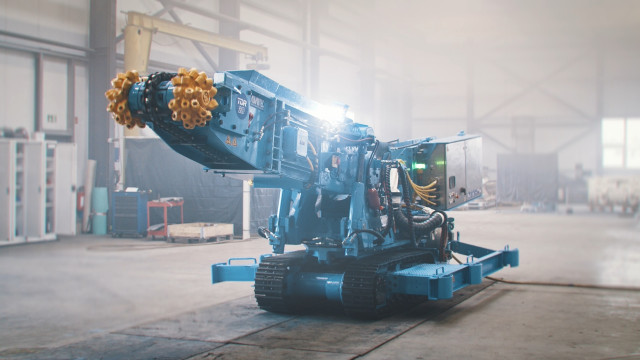

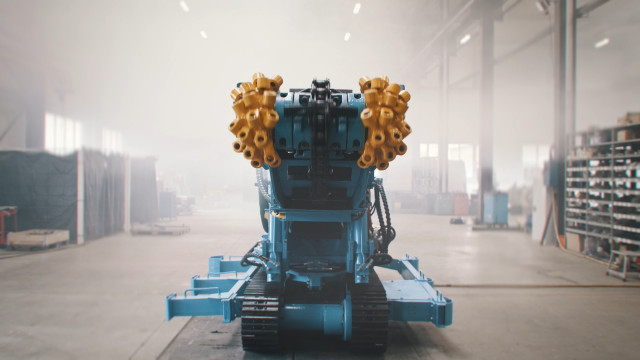

TDR 20
Small, but perfectly formed! This is precisely the TDR 20's strength, because even the tightest working area remains accessible to us.
With 50 kW cutting power and its narrow width of 1,200mm, it cuts at compressive strengths of up to 50 MPa. Additional accessories enable a wide range of uses.
Product information
Product information
| Technical Data | TDR 20 |
|---|---|
| Weight | ~20 t |
| Cutting power | 50 kW |
| Total output | 83 kW |
| Machine length | 6.940 mm |
| Machine width Loading table min. | 1.200 mm |
| Machine height | 1.600 mm |
| Cutting height | (max.) 3.810 mm |
| Cutting width | (max.) 4.090 mm |
| Cutting cross section | 16 m² |
| Cuttable rock strength | 50 Mpa |
| Width crawler track | 300 mm |
| Ground pressure | 10 N/cm² |
| Undercut | 380 mm |
| Gradeability | 20 gon |
